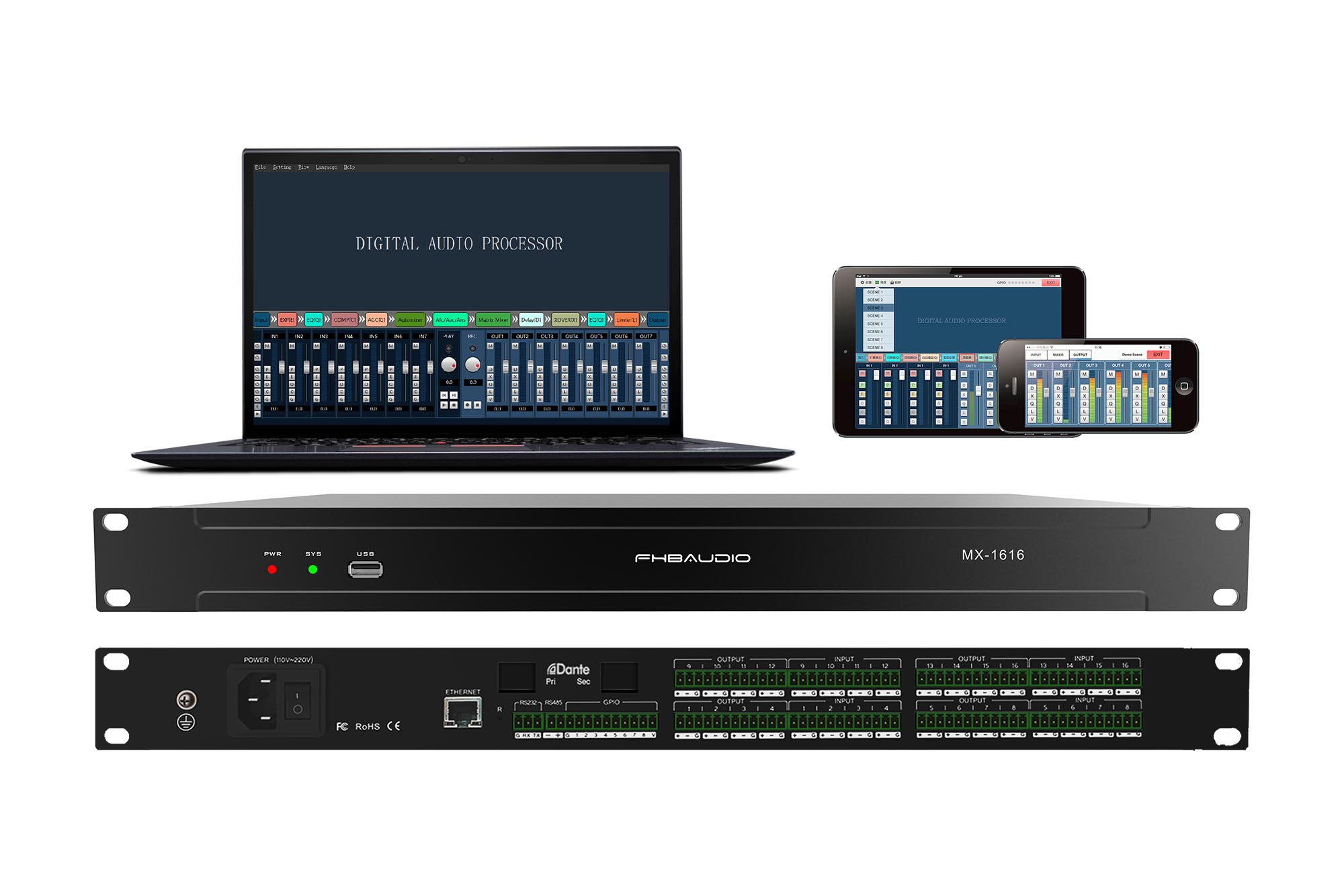

With expander, compressor, equalization 16CH Professional sound system dsp audio procesor
 |
| Model No. | MX-1616 | | DSP Processing | Ti 456MHz FLOPS DSP | | Number of analog channels | 16 Input +16 Output | | Core Algorithm | Automatic mixing, feedback elimination(AFC), echo elimination(AEC), noise elimination(ANC) | | GPIO | 8 ( Including input and output) | |
Main Features:
- USB Background music playback and recording function
- Support mobile phone, tablet control and distributed cloud control
- DSP audio processing, built-in automatic mixer, feedback elimination(AFC), echo elimination(AEC), noise elimination (ANC) function
- Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
- Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
- Full function matrix remix
- Built-in automatic camera tracking function
- Support for scenario presets；
- Automatic memory protection when power off
- 1U Whole aluminum chassis
Specification:
| RS232/RS485 | 1 | | RJ45 control interface | 1 | | USB Port | 1 | | RJ11 phone interface | 0 | | DANTE network interface | 0 | | Simulated maximum gain | 51dB | | Digitalizing bit | 24bit | | Sampling Rate | 48k | | Frequency Response(20~20KHz) | ±0.2dB | | Analog-to-digital dynamic range (A-weighted) | 114dB | | Digital-to-analog dynamic range (A-weighted) | 120dB | | Input to output dynamic range | 108dB | | Total harmonic distortion + noise | ＜0.003% @1KHz ,4dBu | | Floor noise (A- weighted) | -90dBu | | Delay storage | 2s | | Analog input to output system delay | 3ms | |
| Input impedance (balance -type) | 20KΩ | | Output impedance (balance -type) | 100Ω | | Maximum Input Level | +18dBu,balance | | Maximum Output Level | +18dBu,balance | | Equivalent input noise EIN(20-20kHz,A-weighted). | ≤-131dBU | | Phantom power (per input) | 48V | | Input common mode rejection,60Hz | 70dB | | Channel Isolation,1kHz | 104dB | | Dimensions (W*D*H) | 482*258*45(mm) | | Weight | 3Kg | | Power Consumption | <40W | | Operating Temperature | -10 - 50℃ | | Working Power Supply | AC110V-220V,50Hz/60Hz | |
Software:
Our designed PC version control software is the best tool for you to monitor and operate the digital audio processor, which can be used to edit and store scenes (such as meeting mode, artistic performance mode, concert mode, etc.) according to the acoustic characteristics of different functions. The system built-in lock screen function, It can effectively avoid the occurrence of wrong operation.
- The digital audio processor comes with B/S architecture server, which is accessed through web browser, not only realizing channel control and scene selection, but also directly providing download links of PC client and platform components.
- Installed on tablet and mobile phone APP client, sedate and simple design style, panoramic function menu, with fast operation bar, It can be very convenient for the processor to carry out various operations. Everything just to give you a better user experience.
FAQ:
Q1: Are you manufacturer or trade company?
A: We are manufacturer,which located in Shenzhen, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client requirements
Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.
Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Airports, Parliaments, Education institutes, Hotel, Private corporate conference hall etc,.
Q5: http://192.168.1.200/ The web page cannot be opened or the software cannot be downloaded
A: First, check whether the device and PC are connected successfully.
Second, check whether the device and PC are in the same network segment, but please do not set it to the same IP address as the device.In addition, the browser cache may also cause the page to be unable to display. Just clean up the cache
Q6: What configuration is required to use the system for the first time?
A: For the first time to use the system, please follow the following steps:
- 1)Read the instructions carefully and pay special attention to safety.
- 2)Connect PC end, device, audio input and output device according to the instructions of the back panel. Firstly, PC end and device can be connected via LAN network (otherwise, please pay attention to the location of the interface); Next, connect the signal input device (microphone, line input device, etc.), The signal input interface and the signal output interface are located on the right side of the back panel.
- 3)Plug in the power and test the device: select the device list in the local device from the menu of the system, double-click the IP address corresponding to the device in the list, and then enter the user name and password in the pop-up dialog box to complete the login.
- (4)If the login is successful, you can manipulate all other functions
Q7: Can't find or connect devices?
A: First, we should check whether there is a problem with our network cable (ordinary network cable), and then check whether the device and PC are in the same network segment. The initial IP of our device is 192.168.1.200, so we first consider setting the network segment of 192.168.1.*, but please do not set it to the same IP address of the device. After setting up again open PC operating software for device search and connection can be.
Q8:What is the IP address of the device?
A:The default IP address of the device is 192.168.1.200, so when setting the network segment, you can set the 192.168.1.xxx network segment.
Q9:How to connect RS232?
A:RS232 corresponding interface on the back panel of the processor: G, Rx, TX; respectively indicating: grounding, receiving command, sending command.
Q10:How to connect RS485?
A:RS485 corresponding interface on the back panel of the processor is -, +; Connect the corresponding interface of central control host or control terminal respectively.
Q11: What’s the delivery time?
A:Sample order: During 5days,Bulk order:10-15days
